Inertial Measurement Unit
IMU series

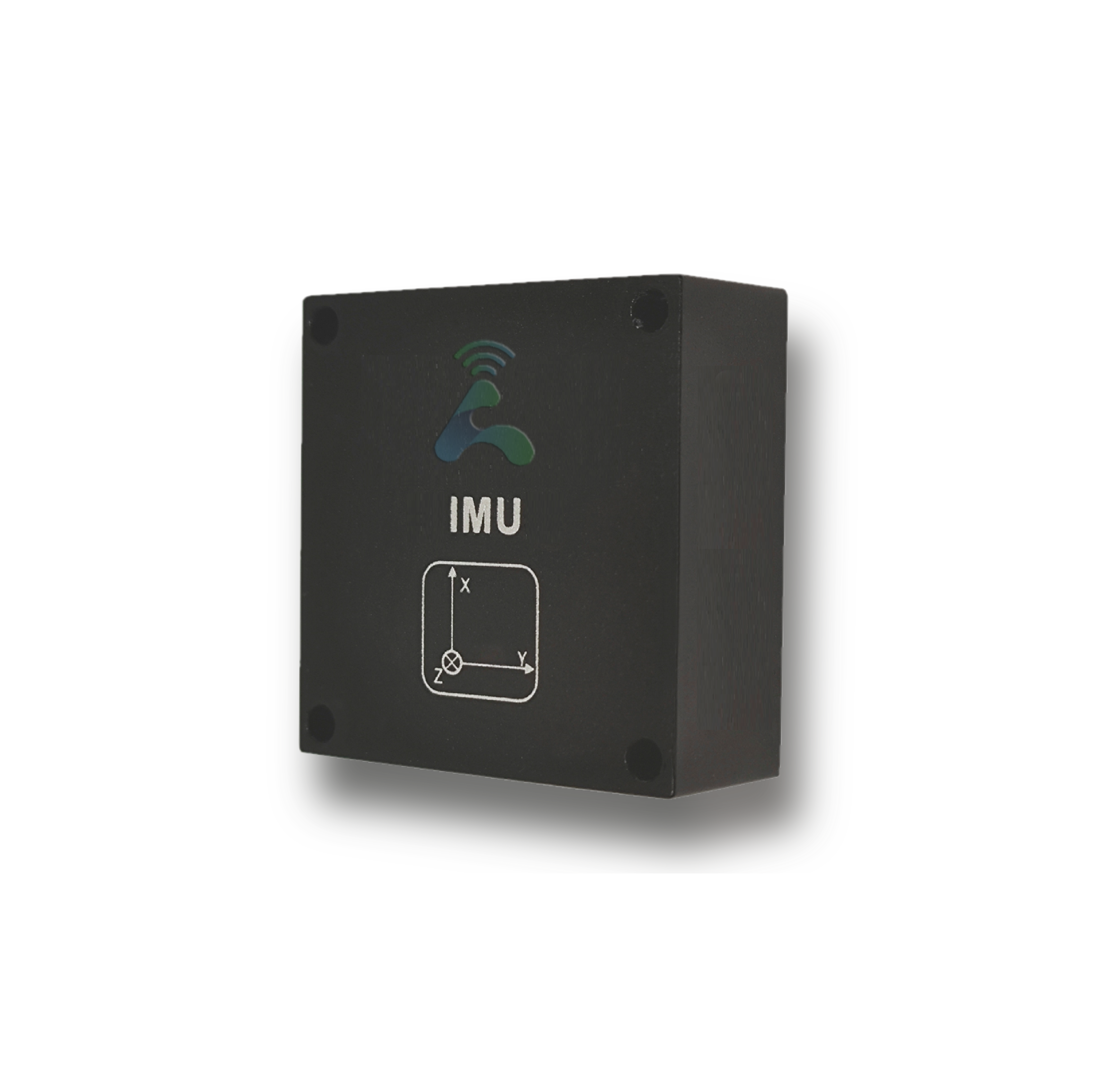

HSASK offers 11 different IMUs for industrial , automotive and higher level applications. HSASK IMU is a 6-degree-of-freedom high-performance automotive grade inertial measurement unit with built-in IMU chips and automotive grade storage chips. IMU undergoes complete temperature compensation and accuracy calibration before leaving the factory, providing customers with cost-effective solutions.
The IMU inertial measurement unit has a small volume, light weight, and is ultra durable. It has been widely used in high-precision positioning systems for autonomous driving, intelligent driving domain control, ROVs, smart agriculture, dynamic control systems and attitude systems, platform stability, and other fields.
Contact Us
Application Scenario
Core Competence
-
Accurate calibration & perfect performance -
12 step quality control, ultra reliable, comprehensive functionality -
Successfully applied in dozens of fields, with over 1000 customers using it -
Using original large brand components, high-quality & competitive prices
Parameters
-

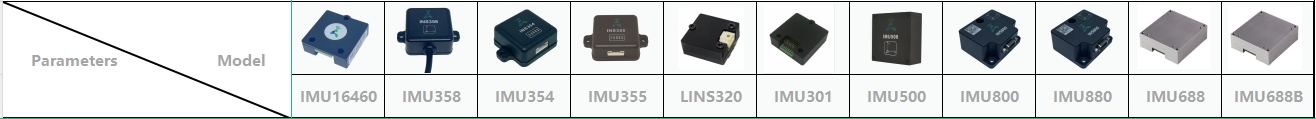

IMU Model & Application scenarios
-
IMU Basic Parameters
IMU Model IMU16460 IMU358 IMU354 IMU355 LINS320 IMU301 IMU500 IMU800 IMU880 IMU688 IMU688B Application scenarios Industrial Industrial Industrial Automotive Automotive Automotive Automotive higher level higher level higher level higher level basic parameters Size（mm） 22.4*22.4*7.4 36*36*18 36*36*16 36*36*16 22.4*22.4*10.5 22.4*22.4*7.4 28*28*11 38.6*44.8*21.5 38.6*44.8*21.5 44*47*14 44*47*14 Weight <10grams <100grams < 25grams <25grams <22grams <15grams <20grams <55grams <55grams <40grams <40grams Shell material Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Working temperature -40 - 85°C -40 - 85°C -40 - 85°C -40 - 85°C -40 - 85°C -40 - 125°C -40 - 125°C -40 - 85°C -40 - 85°C -40 - 75°C -40 - 85°C Storage temperature -55 - 100°C -55 - 100°C -55 - 100°C -55 - 100°C -55 - 100°C -55 - 150°C -55 - 150°C -55 - 100°C -55 - 100°C -45 - 85°C -55 - 125°C Power consumption <0.2W <0.3W <0.2W <0.2W <0.2W <0.15W <0.4W <1W <1W <1W <1W communication interface SPI/UART RS232/RS422
/RS485/CANRS-232 RS-232 UART SPI SPI RS422 RS422 SPI SPI ODR output frequency (Hz, default, maximum) 200 - 1000 200 - 1000 200 - 1000 200 - 200 200 - 1000 2000 /
2000200 - 1000 200 - 1000 /
1000/
2000 -
IMU Technical Parameters
IMU Model IMU16460 IMU358 IMU354 IMU355 LINS320 IMU301 IMU500 IMU800 IMU880 IMU688 IMU688B Technical ParameterAttitude angle Roll angle range ±180° ±180° ±180° ±180° / / / / / / / Pitch angle range ±90° ±90° ±90° ±90° / / / / / / Heading angle range ±180° ±180° ±180° ±180° / / / / / / Dynamic accuracy 0.5° 0.5° 0.5° 0.5° / / / / / / Resolving power 0.01°(B4) 0.01°(B4) 0.01°(B4) 0.01°(B4) / / / / / / Accelerometer Range ±6g ±6g ±6g ±8g ±4g ±6g ±6g ±20g ±20g ±20g ±20g Zero bias instability 30μg 30μg 30μg 30μg 45μg 15μg 15μg 10 μg 10 μg 20 μg 20 μg Resolution ratio 0.3mg 0.3mg 0.3mg 0.3mg 0.3mg 0.5mg 0.2mg 0.02mg 0.01mg 0.02mg 0.02mg Nonlinear accuracy 0.1%FS 0.1%FS 0.1%FS 0.1%FS 300ppm 0.1%FS 0.02%FS 0.02%FS 0.02%FS 0.1%FS 0.1%FS Random walk 0.07m/s/√hr 0.07m/s/√hr 0.07m/s/√hr 0.07m/s/√hr 0.03m/s/√hr 0.5m/s/√hr 0.03m/s/√hr 0.02m/s/√hr 0.02m/s/√hr 0.033m/s/√hr 0.02m/s/√hr Bandwidth (default, maximum)） 40 - 240 40 - 240 40 - 240 40 - 500 /
300200 - 200 200 - 200 40 - 500 40 - 500 Gyroscope Range ±400°/s ±400°/s ±400°/s ±400°/s ±250°/s ±400°/s ±300°/s ±400°/s ±400°/s ±450°/s ±450°/s Zero bias instability 4°/h 4°/h 4°/h 15°/h 2°/h 5°/h 2°/h 0.5 º/h 0.1 º/h 3 º/h 0.8 º/h Resolving power 0.01°/s 0.02°/s 0.02°/s 0.02°/s 0.087°/s 0.01°/s 0.0125°/s 0.0001°/s 0.0001°/s 0.007°/s 0.007°/s Nonlinear accuracy 0.1%FS 0.1%FS 0.1%FS 0.1%FS 100ppm 0.5%FS 0.02%FS 0.02%FS 0.02%FS 0.1%FS 0.1%FS Random walk 0.5º/√hr 0.5º/√hr 0.5º/√hr 0.3º/√hr 0.25º/√ hr 0.3º/√ hr 0.08º/√hr 0.1 º/√hr 0.1 º/√hr 0.17°/√hr 0.06°/√hr Bandwidth (default, maximum) 40 - 116 40 - 116 40 - 116 40 - 500 /
300200 - 200 200 - 200 480 - 480 400 - 400 Magnetometer Range / / / ±8 Gauss / / / / / / ±8 Gauss Noise 0.5mG / / / / / 50μG Resolving power 0.2mG / / / / / 0.2mG Scale factor accuracy 0.1%/G / / / / / / Nonlinear accuracy 0.1%FS / / / / / /
