GNSS Inertial Navigation System

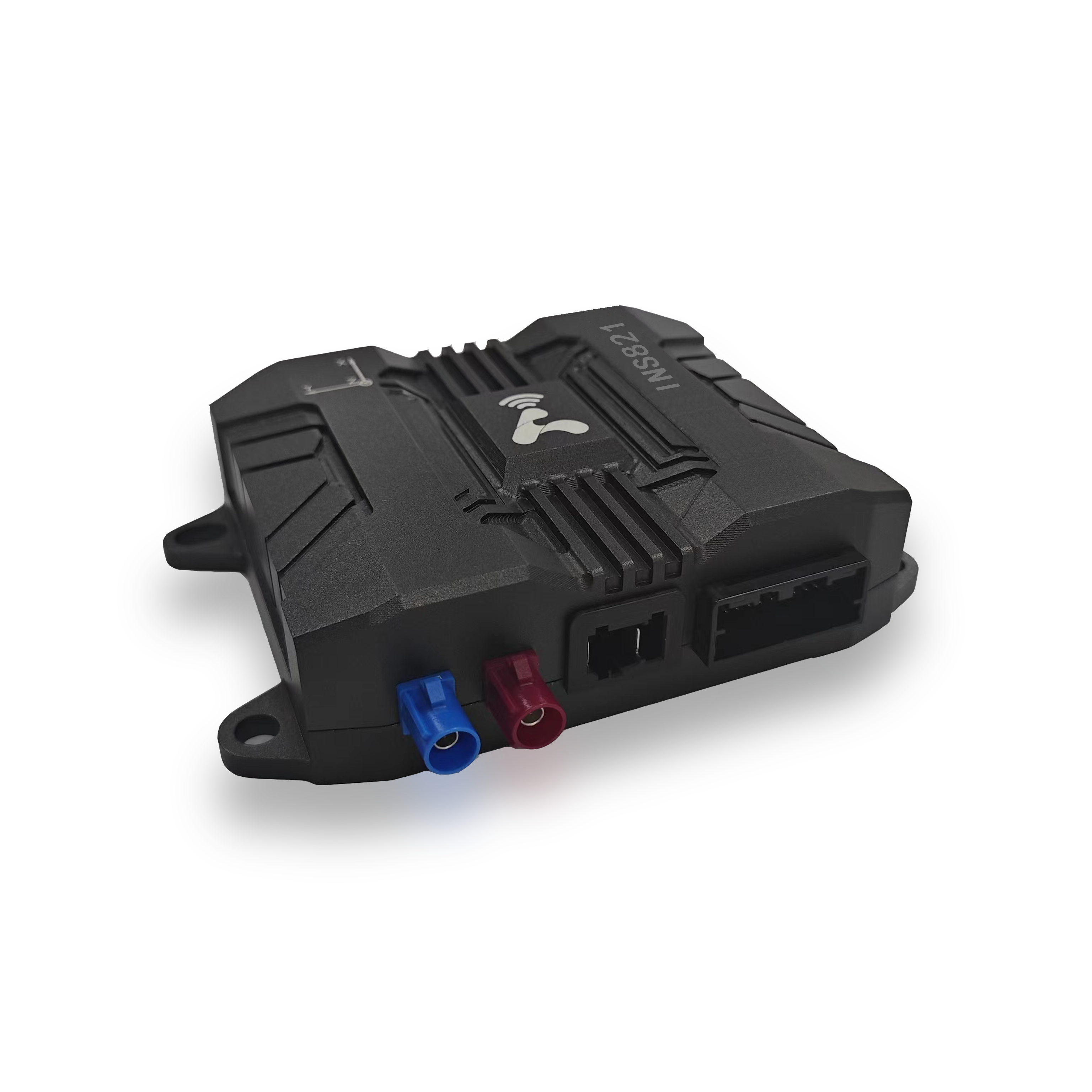

INS821
INS821 is a high-precision automotive integrated navigation system. It has a built-in high-precision satellite positioning module integrating tactical-grade 6-axis MEMS inertial measurement unit and PPP-RTK function. It is equipped with a higher-precision IMU module and can operate in various harsh environments. Provide real-time position, attitude, speed information, acceleration, angular velocity and other information. The product is small in size, light in weight, and cost-effective. It is suitable for intelligent driving application scenarios such as passenger cars, Robotaxi, Robotruck, port logistics vehicles, and mining area engineering vehicles. Other features (camera, lidar, etc.) can be added according to customer needs. ) assists in realizing multi-source sensing fusion positioning.
Contact Us
Application Scenario
Core Competence
-
Automotive Functional safety design -
Vehicle motion constrained navigation algorithm -
Ensure high position accuracy when satellite loses lock -
Integrated navigation-level software & hardware
Parameters
-
GNSS technical parameters
RTK positioning accuracy dynamic RMS ≤10cm +1ppm(1o) static <2cm +1ppm(1o) Support satellite system GPS L1,C/A,L5 + BDS B1l,B2a + Galileo E1,E5a -
IMU technical parameters
IMU indicator Parameter X Y Z Gyro Type MEMS MEMS MEMS Measuring range ±300°/s ±300°/s ±300°/s Bias instability (Allan) ≤1.0°/h ≤1.0°/h ≤1.0°/h Angle random walk ≤0.08°/√h ≤0.08°/√h ≤0.08°/√h Accelerometer Type MEMS MEMS MEMS Measuring range ±6g ±6g ±6g Bias instability (Allan) ≤15μg ≤15μg ≤15μg Rate random walk ≤0.03m/s/√h ≤0.03m/s/√h ≤0.03m/s/√h -
Navigation technical parameters
Integrated navigation system Satellite loss accuracy (2σ) Horizontal position(RMS) ≤1.0cm + 1ppm Fusion wheel speed navigation accuracy (1km or 2min) 0.20% Elevation position (RMS) ≤1.5cm+ 1ppm 1.5m Horizontal speed (RMS) ≤0.03m/s 0.1m/s Elevation speed (RMS) ≤0.05m/s 0.08m/s Attitude accuracy (STD) ≤0.1° 0.1° Heading accuracy (STD) ≤0.1° 0.2° Physical parameters Size 91x117x30（mm） Weight ≤250g Operating temperature -40℃～ 85℃ Power supply & power consumption 9 V～36V DC power consumption < 10W (rated voltage 12V) Data update rate 100 Hz Interface Type Vehicle Ethernet*1, RS232/RS422*1, RS232*1 (RTK differential port), PPS*1, CAN*1, CANFD*1
